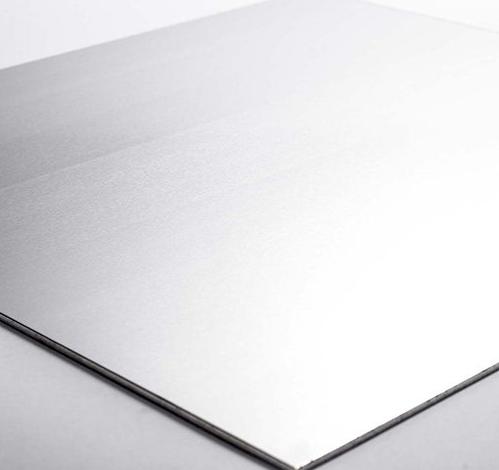

Aluminum Magnesium Manganese Plate
Thickness: 0.7 mm ~ 1.5 mm
Length: 6 – 12m
width: 300-1200mm or customer’s requirement
تقديم المنتج
Aluminum magnesium manganese Plate is a type of roofing material, also known as roof panels or wall panels. It is a lightweight and corrosion-resistant building material mainly used as roofing and exterior wall enclosure materials. It is mainly composed of aluminum (Al, content>90%), magnesium magnesium (Mg, 1.0% -3.0%), manganese (Mn, 0.5% -1.5%) alloys, belonging to the 3000 series deformed aluminum alloys (such as AA3003, AA3004, AA3005), with a density of about 2.73g/cm ³, which is about one-third of steel, and has excellent corrosion resistance and good mechanical properties.
Adding magnesium and manganese to aluminum can enhance the properties of the material. Magnesium helps to improve the strength and hardness of alloys, while manganese can enhance their workability and corrosion resistance. The surface of the metal plate can be treated with anodizing or painting.
Aluminum magnesium manganese board is widely used in roof and wall systems of airport terminals, aircraft maintenance garages, stations and large transportation hubs, conference and exhibition centers, sports venues, exhibition halls, large public entertainment facilities, public service buildings, large shopping centers, commercial facilities, residential buildings and other buildings.
Product Specifications
| غرض | Parameters |
| اسم المنتج | Aluminum magnesium manganese plate |
| سماكة | 0.7 mm ~ 1.5 mm (commonly used) |
| عرض | 300 mm ~ 1200 mm, Customer request |
| طول | can be customized (usually 6-12 meters) |
| Surface coating | PVDF, PE, anodizing, film coating, etc |
| الألوان | include silver gray, titanium gold, champagne gold, dark gray, custom colors, etc |
| طلب | roofing tile |
| الحد الأدنى لكمية الطلب | 10 طن |
| خدمة المعالجة | اللحام، اللكم، القطع، الانحناء، فك اللفائف |
| شروط الدفع | 30% +70% T/T,100% L/C at sight |
| حزمة النقل | التعبئة القياسية الصالحة للإبحار |
Comparison between Aluminum Magnesium Manganese Plate and Color Steel Plate
| – | Al-Mg-Mn Alloy Sheet | Color steel sheet |
| Durability | Form an aluminum oxide film with the atmosphere to prevent further corrosion. | Under the erosion of humid air, rain, and snow, it is easy to corrode and rust, especially at the joints. |
| Weight | Lightweight (with a density of 2700kg/m3) | Relatively heavy in weight (density of 7850kg/m3) |
| Strength and stiffness | Aluminum alloy contains magnesium and manganese, therefore it has certain strength and stiffness | Good strength and stiffness |
| Appearance | It can be divided into non painted (hammering, embossing, pre passivated alumina surface treatment, etc.) and painted types (PVDF, SMP, PE, PVC film, etc.) | Painting materials (PVDF, SMP, PE, PVC film, etc.) |
| Lightning protection performance | The melting point is low (660 degrees Celsius), and in the event of a fire, the roof is easily burned through, causing the fire to spread outward rather than horizontally inward, which helps firefighters to enter the fire hose from the top to put out the fire. | The melting point of steel is high (1515 degrees Celsius) |
| Cost performance | higher | lower |
Case Study: After a chemical plant switched to aluminum-magnesium-manganese panels, the workshop temperature dropped from 42℃ to 25℃, saving more than ¥500,000 in electricity costs annually.
Application scenarios
- Large public buildings
Airports/Sports Centers: Lightweight features suitable for large-span structures (such as Beijing Daxing Airport), with a vertical locking system achieving 100% structural waterproofing. - Commercial and cultural landmarks
Museum/Opera House: PVDF coating provides rich colors and does not fade, enhancing architectural aesthetics. - Industrial and Special Environment
Chemical plant/coastal warehouse: Corrosion resistance far exceeds that of color steel plates and salt spray corrosion resistance. - Green building
Photovoltaic roof (BIPV): Reflecting sunlight reduces energy consumption, and the surface temperature is 10-15 ℃ lower than the environment.
Our Certificates
Customer affirmation
Why choose us ?
We are an integrated industrial and trade company that can produce steel independently and reduce costs.
From raw materials to finished products, we control quality throughout the process to ensure that the products meet customer requirements.
The combination of production and sales confidentiality can respond to orders quickly and shorten delivery time.
One-stop service, from consultation to production, and finally to after-sales service, provides all-round support.
We are self-produced, reducing dependence on external price fluctuations. In the face of sudden price increases, we can still deliver quickly and on time.
For inventory steel, we can provide preferential prices.
